Gauge.S Classic — gearbox cluster (M3 / M5)

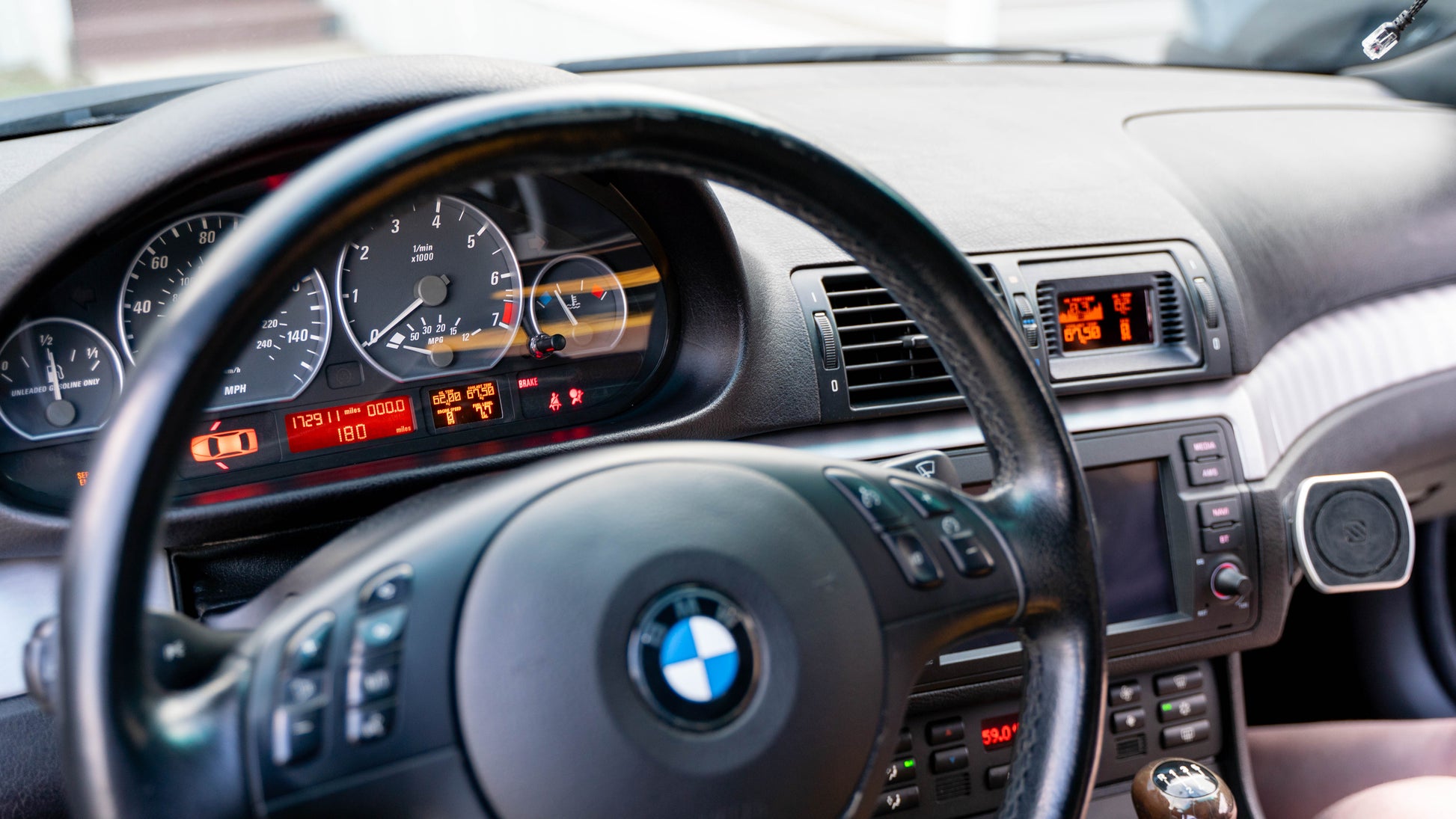

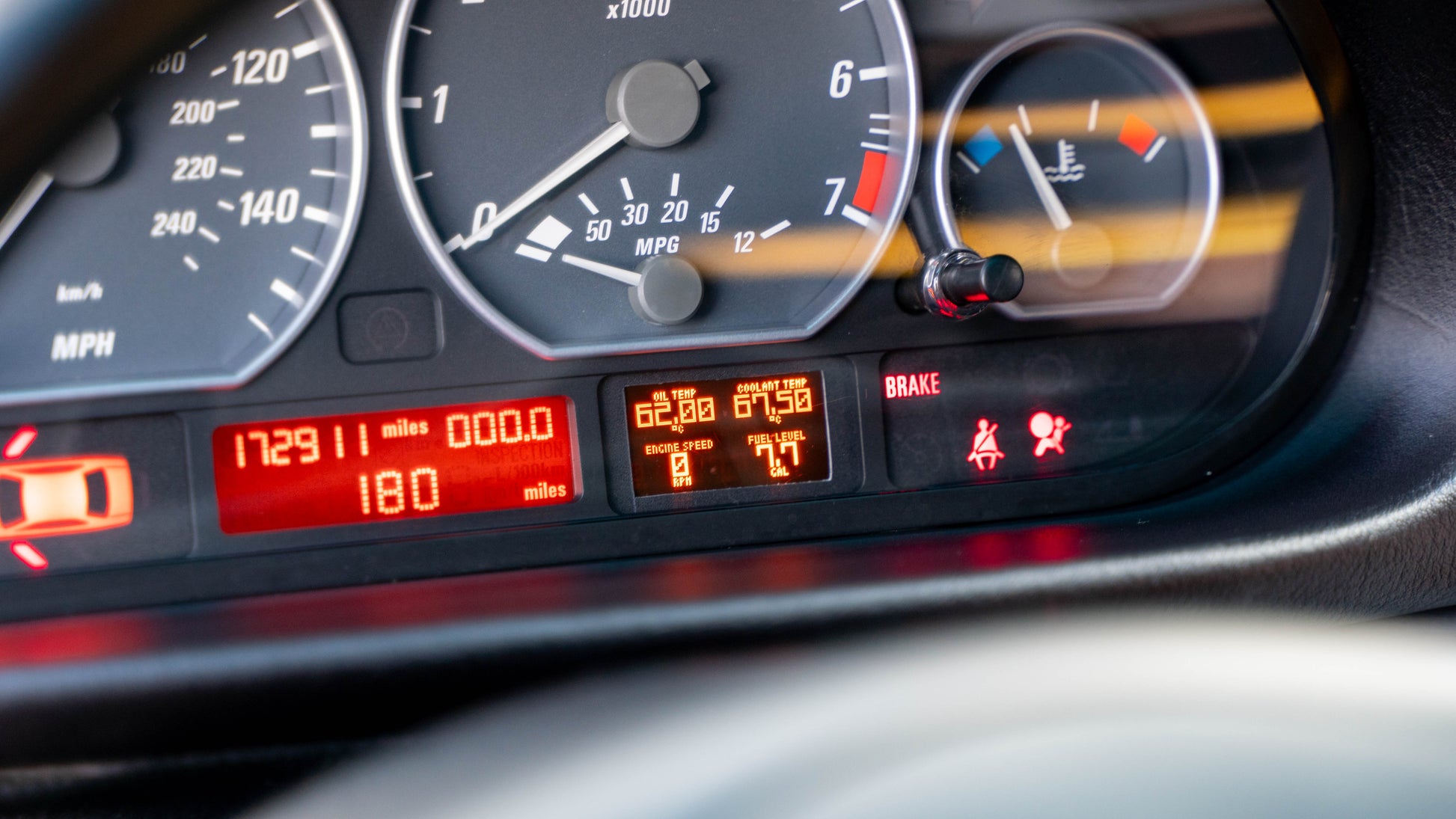

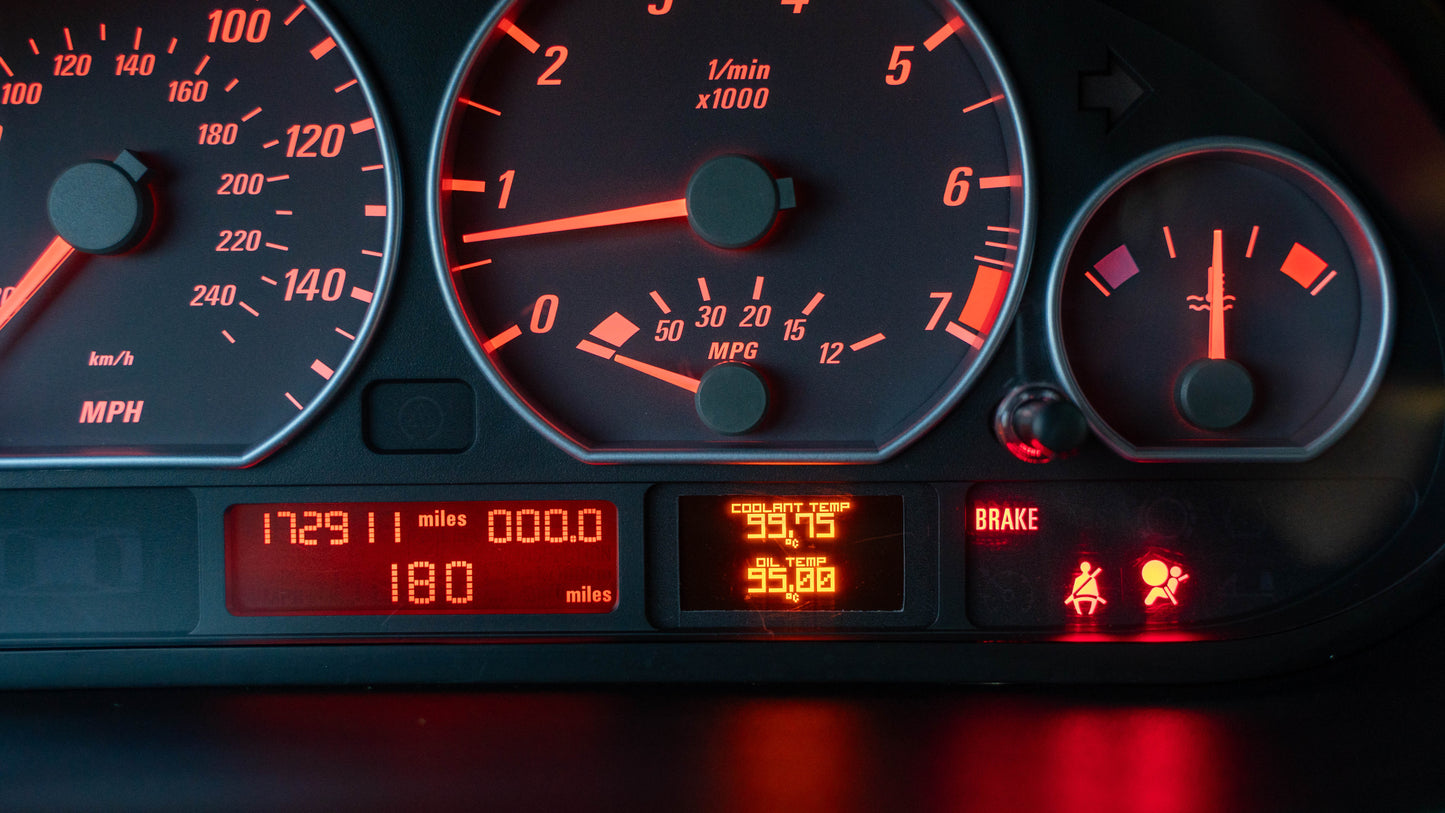

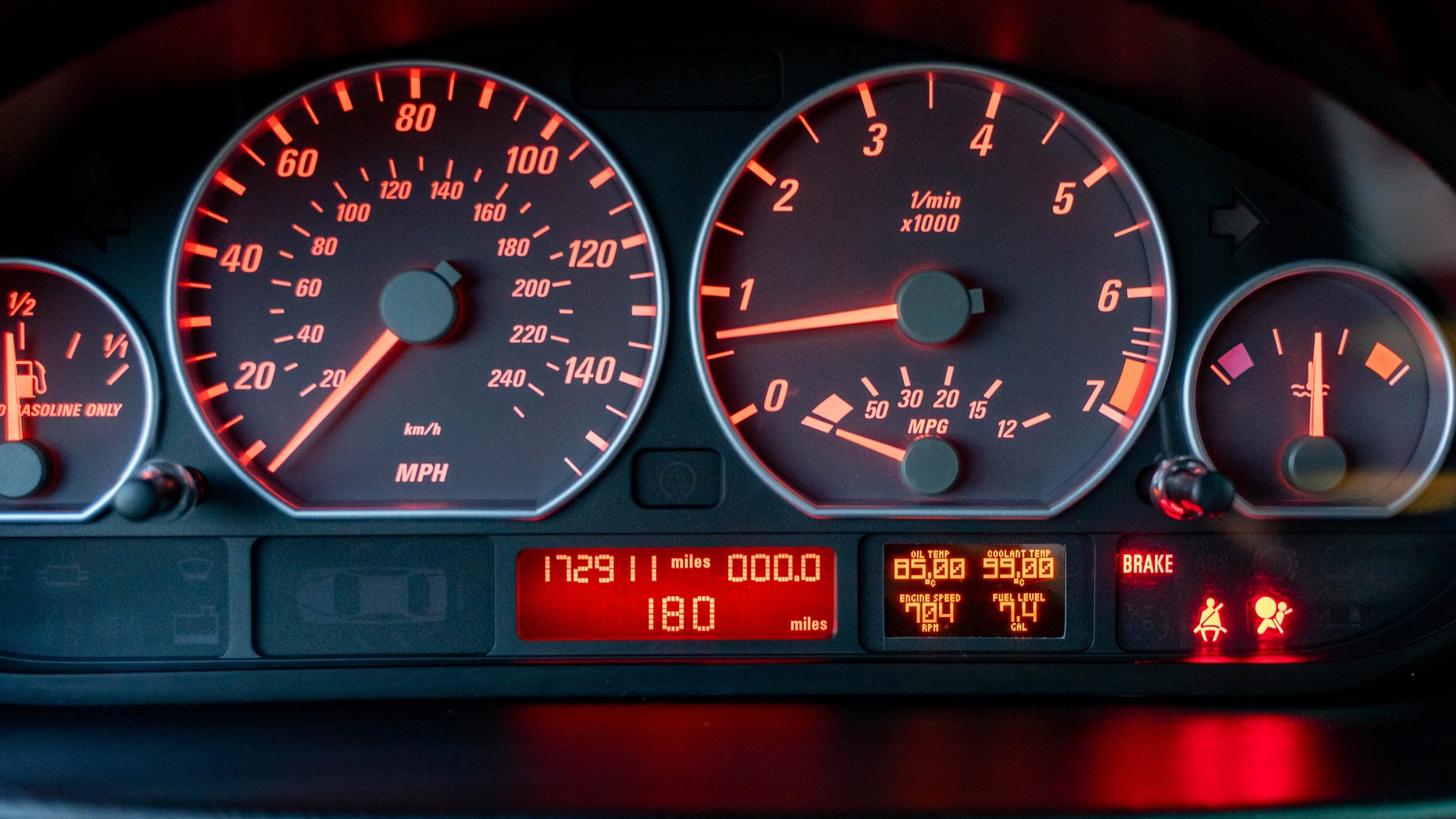

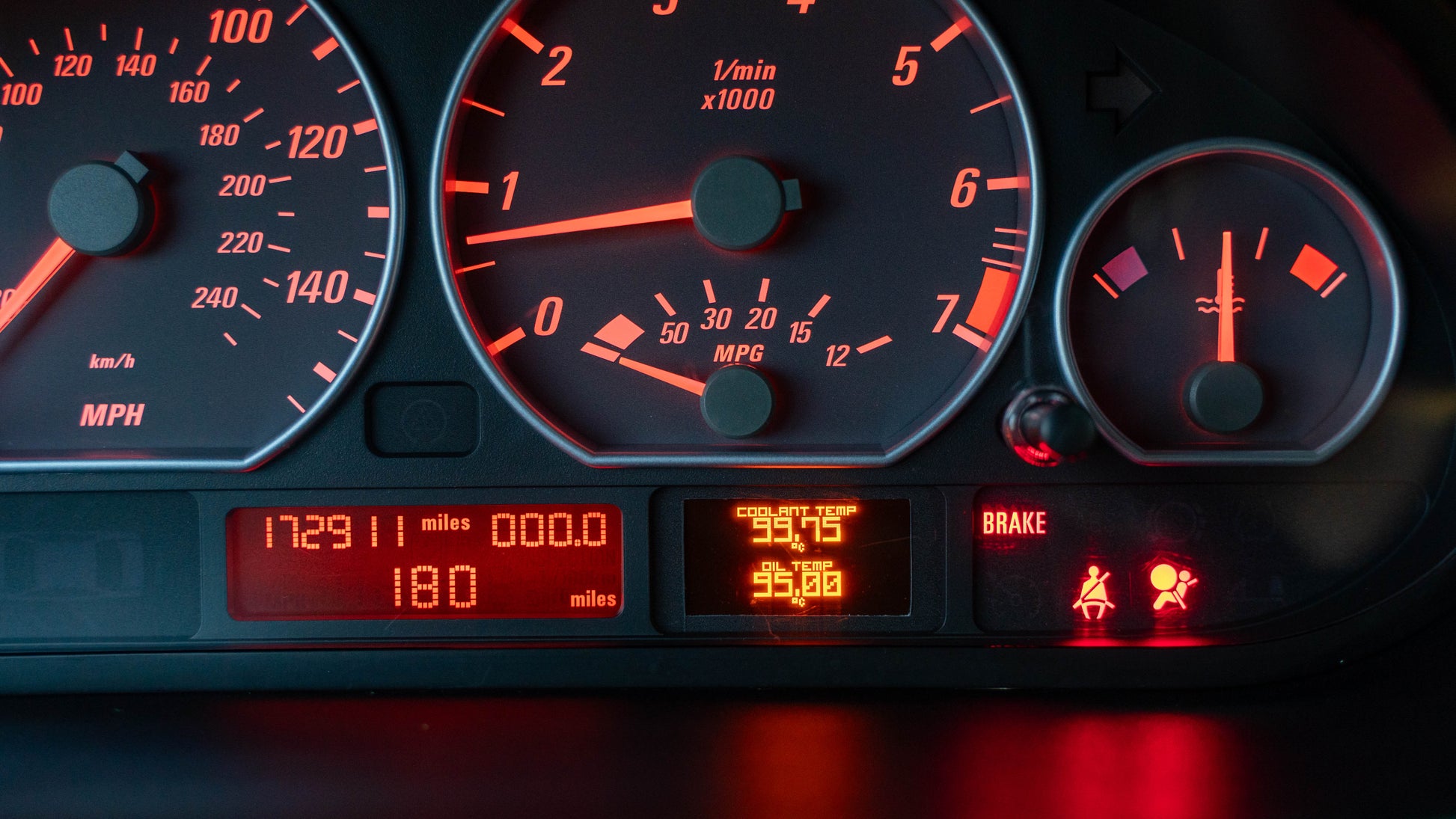

Gauge.S Classic for the gearbox-display window in BMW E38, E39, E46 and E53 clusters, including E46 M3 and E39 M5. Those chassis share this listing. MQS adapter, ribbon extensions and a 1.54" SSD1309 with red tint are in the box.

Opening the cluster is heavy and not reversible. Wiring matches the E39 / E46 vent kit. Same Classic electronics: up to 7 analog inputs and 2× N-channel MOSFET PWM drivers for outputs. Cluster-opening steps are on Discord until the wiki is ready.

In the box

• Gauge.S Classic (OLED) for gearbox cluster
• MQS adapter
• Screen ribbon extensions
• 1.54" SSD1309 with red tint
• Firmware updates

A cheaper DIY path is a yellow screen, ribbons, red foil and the development board. Shop by chassis: E38, E39/E46, E53.

Disclaimer: Please note all Gauge.S models are intended for off-road use only and need to be installed and configured by professional.
