Gauge.S Classic โ€” standalone

Gauge.S Classic โ€” standalone

ยฃ179.00 GBP
ยฃ179.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Add addons

Select extras, then use Add to cart or Shop Pay.

  • Gauge.S Classic โ€” E30/E34 vent mount case
  • Gauge.S Classic โ€” E38 OBC mount case
    ยฃ49.90
  • Gauge.S Classic โ€” E8X vent mount case
  • Gauge.S โ€” OBD2 cable
    ยฃ49.00
  • Gauge.S โ€” MQS harness
    ยฃ39.99

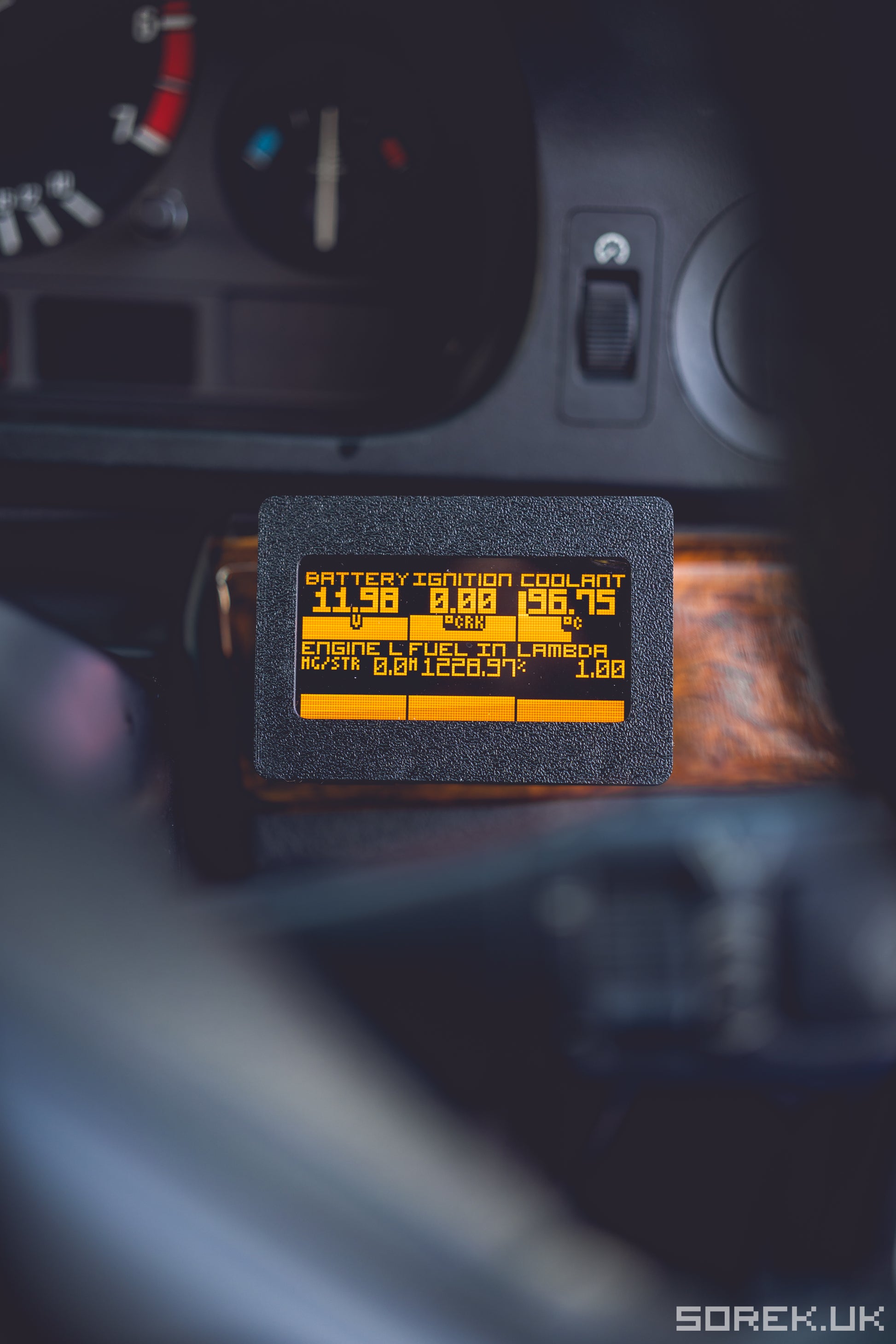

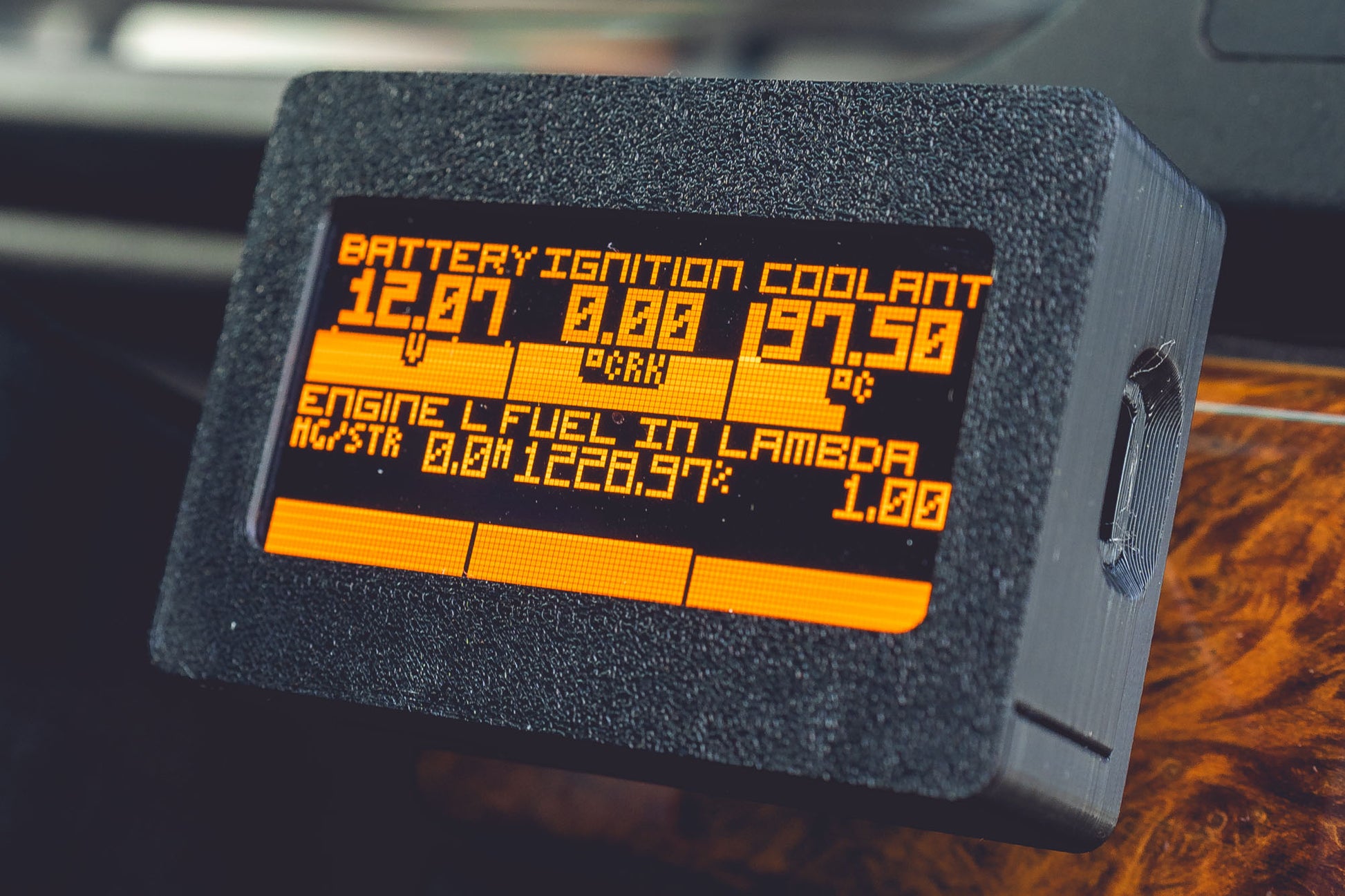

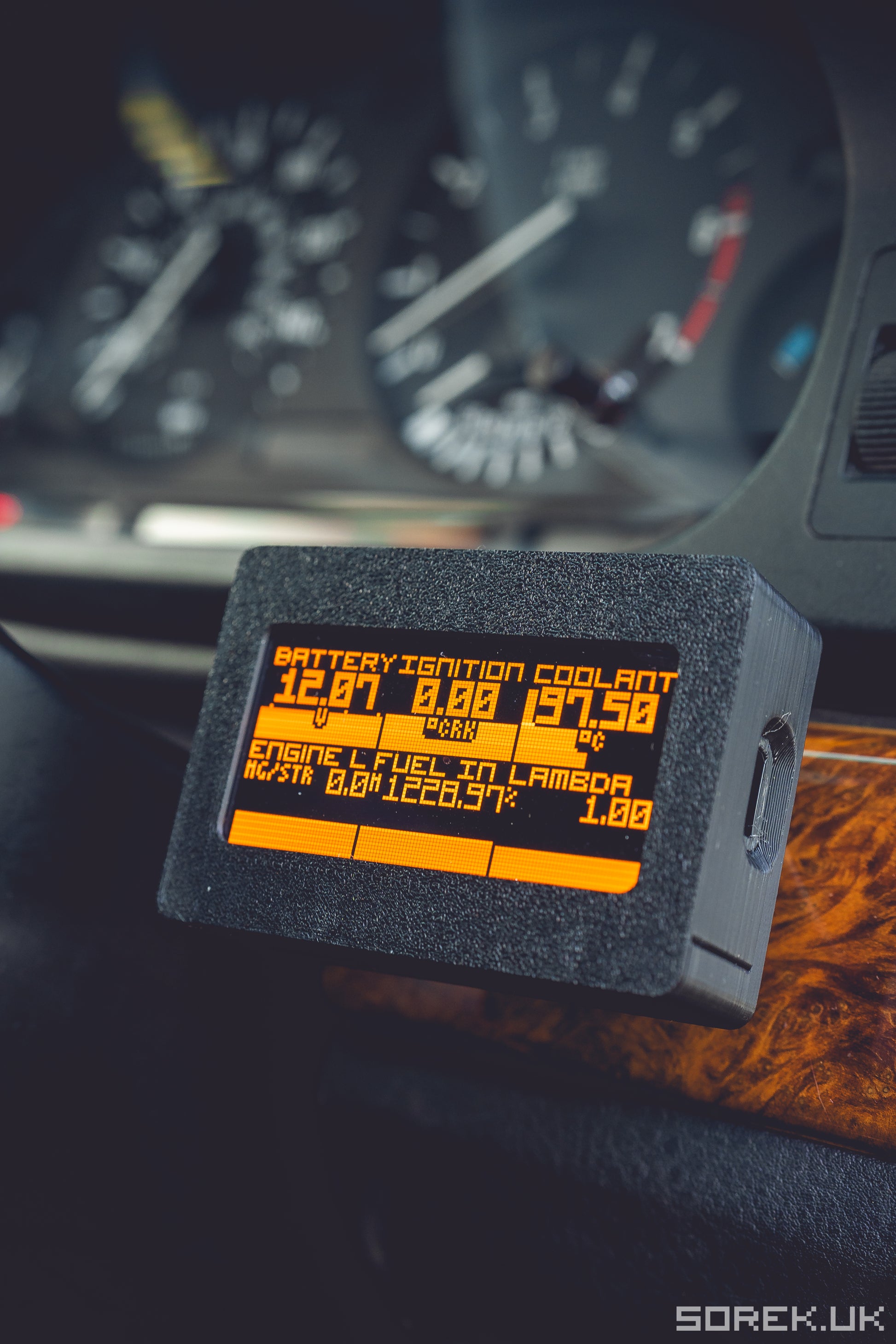

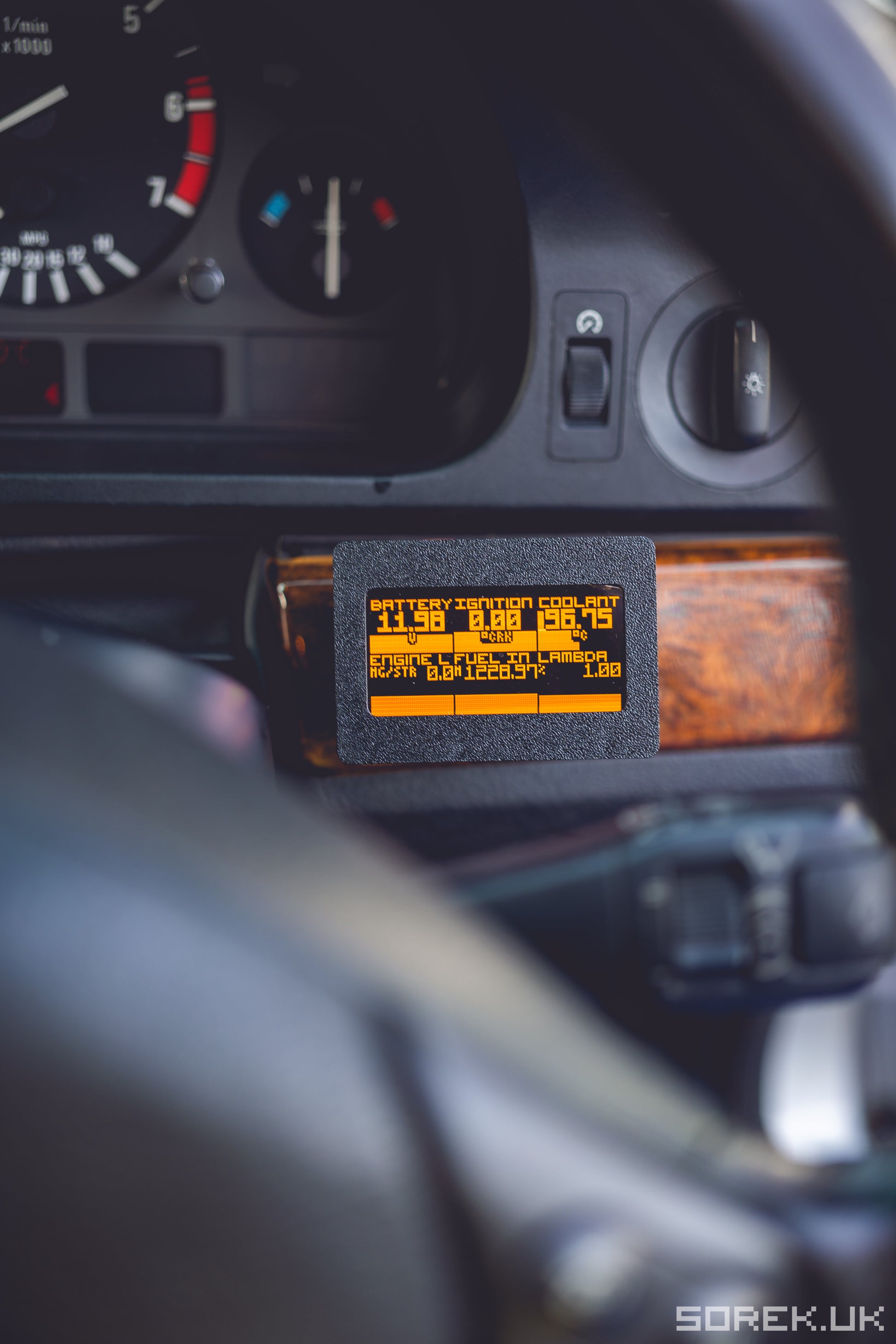

Gauge.S Classic standalone is the OLED unit in its own case. Mount it with the stand, or slot that case into a chassis mount โ€” E30/E34 vent, E8X vent, or E38 OBC โ€” from addons at checkout.

It reads the engine over K-line or CAN, logs to an SD card you can open over WiFi, and takes extra analog sensors. Same electronics as the Classic cluster and vent kits.

In the box

  • Gauge.S Classic (OLED) in standalone case, 71 ร— 49 ร— 22 mm
  • Adjustable stand and screw

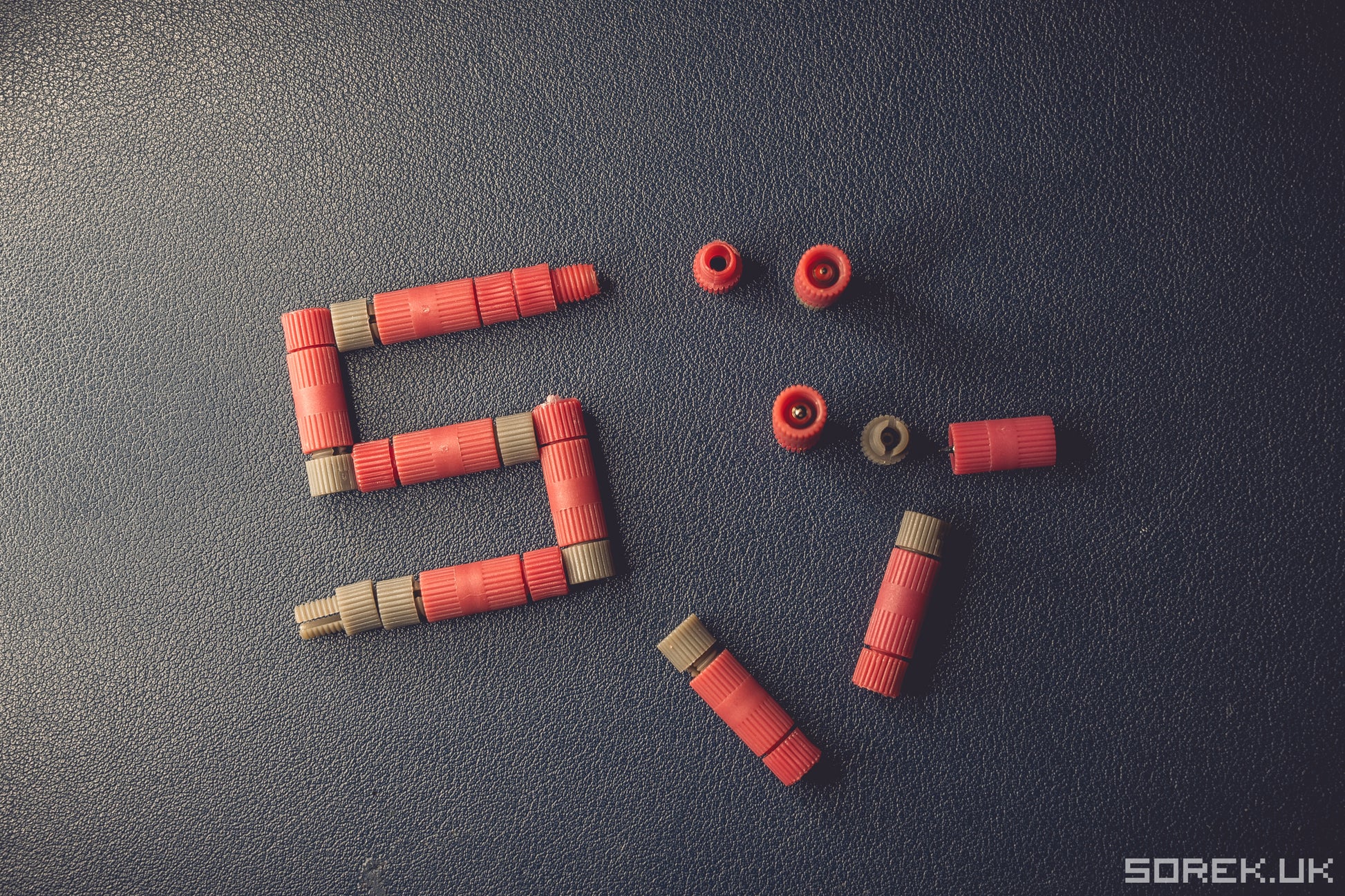

  • 2ร— wire connectors (power, data, button, analog)
  • SD card
  • Firmware updates

Specs

  • Up to 7 analog 0โ€“5 V inputs
  • 2ร— N-channel MOSFET PWM drivers for outputs
  • Accelerometer; GPS module optional
  • ESP32, WiFi SD, auto-log
  • Screen grid from 1ร—1 to 3ร—3
  • CAN out for RaceCapture, JB4, AIM, Podium

Works with

BMW E36 (MS41 / ME5.2), petrol E46 / E39 / E38, OBD2 CAN 2007+, MX-5 NC/ND, Megasquirt, Speeduino, ECUMaster, kdata, and other CAN ECUs. Full pinouts and defs: Gauge.S wiki.

Car-specific Classic kits: E36, E30, E39/E46, E9X. 52mm AMOLED: Gauge.S POD.

Gauge.S overview video by sorek

Disclaimer: Please note all Gauge.S models are intended for off-road use only and need to be installed and configured by professional.
